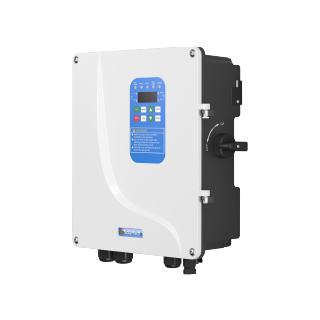

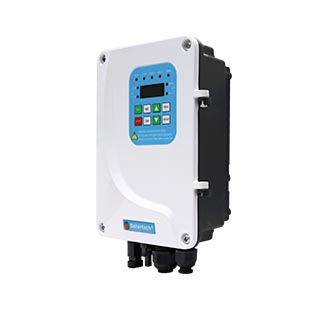

PM-S-AD Series permanent magnetic solar pumping inverter
Solartech PM-S-AD Series Solar Pumping Inverter controls and regulates the operation of solar pumping system. It drives the pump by converting DC power produced by solar array into AC power and adjusts the output frequency according to solar radiation in real time to implement maximum power point tracking (MPPT).
-
Power
0.6-4KW -
Advanced Function:
Hybrid Power Input
Solar Priority
Built-in Remote Monitoring -
Structure
All aluminum design Compact tructure
Product Details
- Overview
- TECH SPECS
- Video
- 3D Drawing
- Accessories
- Related Cases
- Download
- Online Inquiry
- High efficiency semiconductor device used in main circuit. High reliability. Up to 98% conversion efficiency of inverter.
- Dynamic VI maximum power point tracking (MPPT) algorithm. Fast response and good stability. 99% MPPT efficiency.
- Full automagical operation. Complete protection functions. Integrated with water level monitor to prevent overflow and dry running.
- Supports PV input anti-reverse connection, short-circuit, over-current, over-voltage and under-voltage protection.
- Full aluminum alloy case. IP65 protection grade, suitable for various harsh outdoor environments.
- Ambient temperature: -20~+60℃. Ambient humidity ≤95%
- Optional built-in wireless communication module to implement system remote monitoring.
- Optional Pay & Go module to provide convenient and reliable installment payment functions.
- Support PV/AC power complementary input, with solar priority function selection which can meet the requirement of 24 hours application while the priority is given to the maximum utility of solar energy and the AC power supply is automatically shielded to achieved the goal of main power saving.
- One key to enable the power saving mode (CRUISE), limit the maximum input AC power according to the setting value, saving energy.
- Built-in BOOST and PFC circuit for 2.2kW and above power models, built-in BUCK step-down modules for 2.2kW below models, with wide input voltage range, flexible options for solar panels configuration.
- Built-in DC disconnect switch and fuse, integrated design for system cost saving and SPM-S Solar Pump Operation Manual Products Introduction 3 wiring simplifying.
- Pump control functions such as timing control, pressure detection and control, water level detection and control can be realized based on the monitoring system.
|
Inverter Model |
PM600S-AD | PM750S-AD | PM1100S-AD | PM1500S-AD | PM2200S-AD | PM3000S-AD | PM4000S-AD |
|
Rate Power |
600 W | 750 W | 1100 W | 1500 W | 2200 W | 3000 W | 4000 W |
|
Adapting Motor Voltage |
48V | 72V | 110V | 220V | 300 V | 380V | |
|
Max. DC Input Voltage |
100V | 150V | 200 V | 440 V | 850 V | ||
|
Recommended MPP Voltage |
≥60 V | ≥90 V | ≥120 V | ≥180 V | ≥250 V | ≥500 V | |
|
Startup Voltage |
50V | 90V | 360V | ||||
|
Output Current |
15 A | 11A | 7A | 9.5A | |||
|
Output Frequency |
0 - 200 Hz | ||||||
|
Rated Conversion Efficiency |
≥98% | ≥96% | ≥98% | ||||
|
MPPT Efficiency |
99% | ||||||
|
Ambient Temperature |
-20~60℃ | ||||||
|
Display |
LED | ||||||
| Protection Grade | IP65 | ||||||
