World's leading solar pumping system professional manufacturer

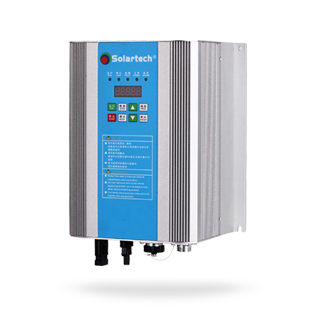

PM series solar pumping inverter
Solartech PM Series Solar Pumping Inverter controls and regulates the operation of solar pumping system. It drives the pump by converting DC power produced by solar array into AC power and adjusts the output frequency according to solar radiation in real time to implement maximum power point tracking (MPPT).
  • Power Range

    400 - 1800W
  • Advanced Function

    Support PayGo
    Remote monitoring
  • Structure

    All aluminum design
    Excellent heat dissipation
PM600D solar pumping inverter
PM600D solar dc controller
PM400D solar pumping inverter
Product Details
  • Overview
  • TECH SPECS
  • Related Products
  • Related Cases
  • Download
  • Online Inquiry
  • ●Compatible with pumps using high efficient permanent magnet DC brushless motors.
  • ●High reliability due to the uses of intelligent power modules (IPM) in main circuit.
  • ●Up to 98% conversion efficiency of the inverter.
  • ●Supporting soft start of pump, optional water level switch to prevent overflow and dry running.
  • ●Full aluminum alloy shell with IP52 protection grade, ambient temperature: -20℃~+60℃

Model
Max.DC input Voltage (V) Input Strings Recommended MPP Voltage (V) Rated Input Current (A) Rated Output Frequency (Hz) Output Voltage (Vac) Net Weight (KG) Gross Weight (KG) Packing Size (mm)
L
W
H
PM400D
80
1
20 - 60
13
0 - 110
24 / 36
2.5
3.3
325
285
175
PM600D 150 1 60 - 120 13 0 - 110 48 3.6 4.3 355 280 225
PM1200D 200 1 120 - 160 11 0 - 110 110 5.0 5.8 445 280 225
PM1800D 200 2 120 - 160 16 0 - 110 110 5.0 5.8 445 280 225
