Solar Pumping Inverter
PM-S series solar pumping inverter
Solartech PM-S Series Solar Pumping Inverter controls and regulates the operation of solar pumping system. It drives the pump by converting DC power produced by solar array into AC power and adjusts the output frequency according to solar radiation in real time to implement maximum power point tracking (MPPT).

  • Power Range

    200 - 1500W

  • Advanced Function

    Support remote monitoring

  • Structure

    All aluminum design
    Compact tructure

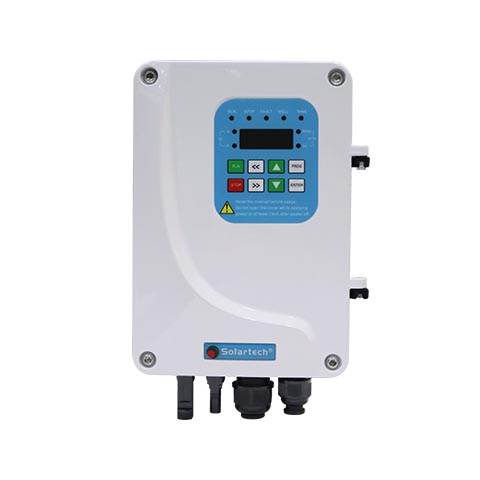

PM-S solar pumping inverter

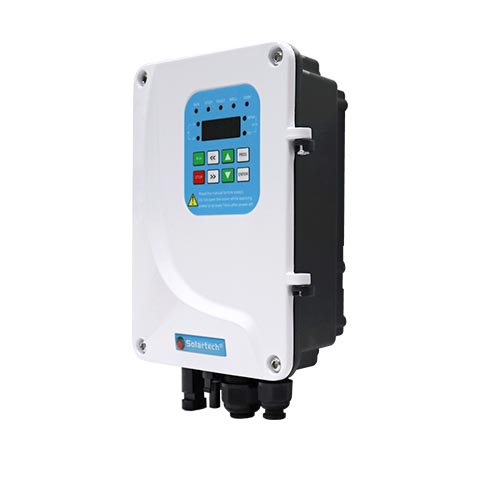

PM-S permanent magnet solar pumping inverter
Product Details
  • Overview
  • TECH SPECS
  • Related Products
  • Related Cases
  • Download
  • Online Inquiry
  • ●High efficiency semiconductor device used in main circuit. High reliability. Up to 98% conversion efficiency of inverter.
  • ●Dynamic VI maximum power point tracking (MPPT) algorithm. Fast response and good stability. 99% MPPT efficiency.
  • ●Full automagical operation. Complete protection functions. Integrated with water level monitor to prevent overflow and dry running.
  • ●Supports PV input anti-reverse connection, short-circuit, over-current, over-voltage and under-voltage protection.
  • ●Full aluminum alloy case. IP65 protection grade, suitable for various harsh outdoor environments.
  • ●Ambient temperature: -20~+60℃. Ambient humidity ≤95%.
  • ●Optional built-in wireless communication module to implement system remote monitoring.
  • ●Optional DM series data monitor to realize remote monitoring and control of the system.
  • ●Optional Pay & Go module to provide convenient and reliable installment payment functions.




Model PM200S PM300S PM500S PM600S PM750S PM1100S PM1500S
Rate Power 200 W 300 W 500 W 600 W 750 W 1100 W 1500 W
Adapting Motor Voltage
 24 V 48 V 72 V 110 V
Max. DC input Voltage 60 V 100 V 150 V 200 V
Recommended MPP Voltage ＞30 V ＞60 V ＞90 V ＞120 V
Startup Voltage 22 V 45 V
Output Voltage 15 A
Output Frequency 0 - 200 Hz
Rated Conversion Efficiency ≥98%
MPPT Efficiency 99%
Ambient Temperature -20~60℃
Display LED
Protection Grade IP65
Cooling Method Natural air cooling
